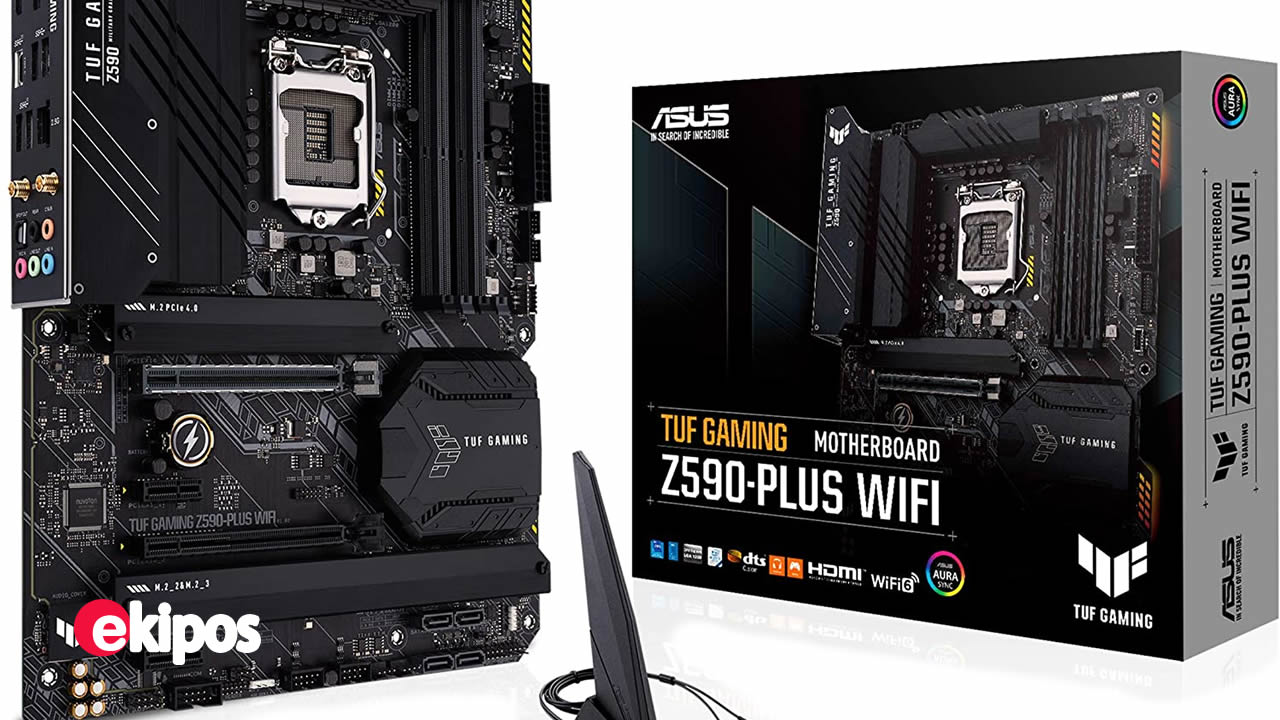

ASUS TUF Gaming Z590-PLUS WIFI Intel

ASUS TUF Gaming Z590-Plus WiFi 6 LGA 1200 (Intel 11ª/10ª generación) ATX (PCIe 4.0, 3xM.2/NVMe SSD, 14+2 etapas eléctricas, USB 3.2 panel frontal tipo C, 2.5Gb LAN, Thunderbolt 4, Aura RGB)
Código: 3398 | Garantía:12 meses | PB:kg. 1.00

Disponible

Confirmado el pago, la entrega se realiza en la ciudad y plazo indicado en proforma.

112085 7475 Compartir

+ ASUS | + Placas madre (25) | Partes de Estaciones de Trabajo | Ultimos

« Anterior Producto Siguiente »

Placas madre | ASUS TUF Gaming Z590-PLUS WIFI Intel | Ekipos Celular: 60587770
ASUS TUF Gaming Z590-Plus WiFi 6 LGA 1200 (Intel 11ª/10ª generación) ATX (PCIe 4.0, 3xM.2/NVMe SSD, 14+2 etapas eléctricas, USB 3.2 panel frontal tipo C, 2.5Gb LAN, Thunderbolt 4, Aura RGB)
Código: 3398
Socket Intel® LGA 1200: Listo para procesadores Intel® Core™ de ??11.ª y 10.ª generación.
Solución de potencia mejorada: 14 + 2 fases de poder DrMOS, PCB de seis capas, puertos ProCool, componentes TUF de grado militar y Digi + VRM para una máxima durabilidad.
Refrigeración completa: Disipador de VRM ampliado, disipador sin ventilador de PCH, disipador de M.2, puertos de ventilador híbridos y utilidad Fan Xpert 4.
Conectividad de próxima generación: PCIe® 4.0, USB 3.2 Gen 2x2 Tipo-C®, puerto del panel frontal para USB 3.2 Gen 1 Tipo-C® y Thunderbolt4 ™
Diseñado para juegos en línea: Intel® WiFi 6, Ethernet Intel® de 2.5 Gb, TUF LANGuard y tecnología TurboLAN.
Cancelación de ruido de IA de dos vías: Reduce el ruido de fondo del micrófono y la salida de audio para una comunicación nítida en juegos o videoconferencias.
Códec Realtek S1200A: Calidad de audio impecable con una relación señal-ruido sin precedentes de 108 dB para salida de línea estéreo y SNR de 103 dB para entrada de línea.

https://ekipos.com/bolivia/?id=3398
CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Z590
Memoria
Memory Channels: 4DDR4 (Dual channel)
Max Memory Size: 128GB

DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Gráficos
1 x DisplayPort 1.4**
1 x HDMI™ 2.0***

1 x DisplayPort 1.4**

1 x HDMITM 2.0***

* Graphics specifications may vary between CPU types.

** Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.

*** Only Intel® 11th processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.
**** VGA resolution support depends on processors or graphic cards resolution.
Ranuras de expansión
1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)

Intel® 11th & 10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot*

- Intel® 11th processors support PCIe 4.0 x16

- Intel®10th processors support PCIe 3.0 x16

Intel® Z590 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x1 slots
* Supports PCIe bandwidth bifurcation for RAID on CPU function.
* Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.
Almacenamiento
Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

Intel®11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® Z590 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)***

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)****

6 x SATA 6Gb/s ports

* Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

*** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
**** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled.
USB
Rear USB:Total 7 ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 7 ports

1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Rear optical S/PDIF out port

- Premium Japanese audio capacitors

- Dedicated audio PCB layers
- Audio cover
Puertos E/S traseros

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x ASUS Wi-Fi Module

1 x Intel® I225-V 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port
Puertos internos
1 x Thunderbolt 4 header

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
Funciones especiales de ASUS

ASUS TUF PROTECTION

- DIGI+ VRM (- Digital power design with DrMOS)

- Enhanced DRAM Overcurrent Protection

- TUF LANGuard

- Overvoltage Protection

ASUS Q-Design

- M.2 Q-Latch

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- ProCool

- Pre-mounted I/O shield

- SafeSlot

AURA Sync

- AURA RGB headers
- Addressable Gen 2 RGB headers
Software

ASUS Exclusive Software

Armoury Crate

- AURA Creator

- AURA Sync

- Two-Way AI Noise Cancelation

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 4

- EZ update

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

DTS Custom for GAMING Headsets

MyASUS

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manejabilidad
WOL by PME, PXE
Accesorios

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antenna

2 x M.2 Rubber Packages

1 x M.2 SSD screw package

1 x TUF Gaming sticker

Installation Media

1 x Support DVD

Documentation

1 x TUF Certification card

1 x User manual
